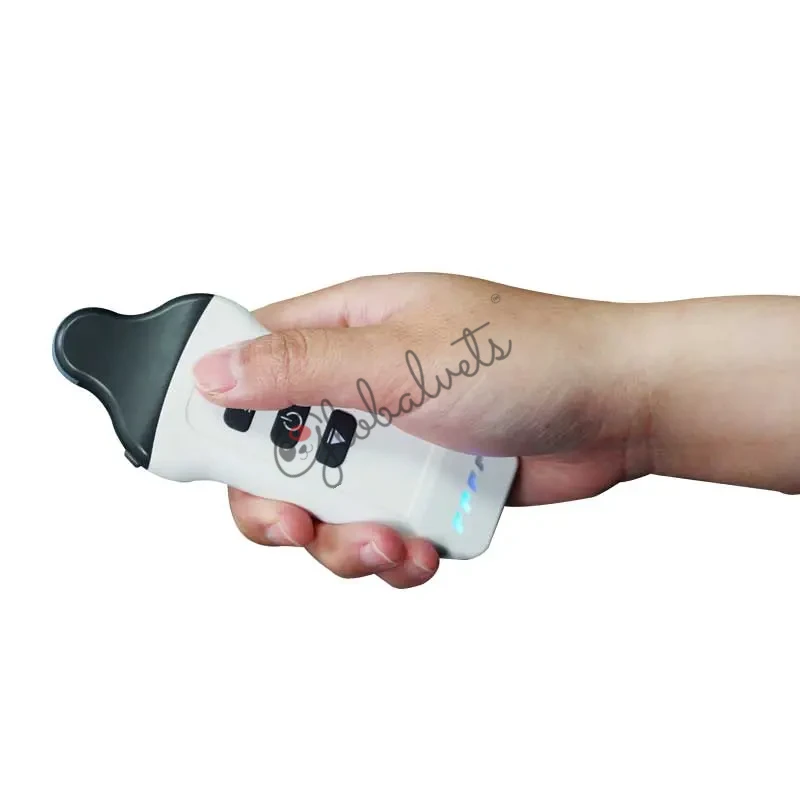

Portable Wireless Ultrasound Scanner Veterinary Pregnancy Diagnostic Instrument Probe for Cats, Dogs, Rabbits and medium-sized animals

Applications

The Portable Wireless Veterinary Ultrasound C2 is a veterinary color Doppler scanner with a 6.0MHz convex probe. It can be used to perform health or pregnancy checks on different animals such as cats, rabbits, guinea pigs, squirrels and other medium-sized animals.

Performance

It is very convenient to connect wireless devices anytime and anywhere

• For pregnant animals
• Master postpartum uterine recovery
• Diagnosis of uterine diseases
• Observe embryonic development
• Estimate the number of babies
• General data measurements

Wireless charging for up to 2 hours of use

Technical parameters

• - Color Doppler veterinary ultrasound
• Adaptation: ios (version 12.3 or above)/Android (version 8.1.0 or above)
• Probe: 6.0MHz Convex Array Probe
•  Probe frequency: 6.0MHz
• - Connection method: Wifi connected to mobile phone/computer (15 meters)
• - Power: 1350mAh (continuous operation ≥ 2 hours)
• - Charging method: wireless charging
• - Display mode: B, B/M, CFM, PDI, PW
• -Puncture assist: In-Plane, Out-Plane
• - Depth (mm): 16 levels adjustable
• - Video playback: 100/200/500/1000 frames
• - Gain range: G30~G105
• - PW Gain: 0-100
• - Image grayscale: 256 levels
• - One-click parameter recovery function
• - Host size: 13.2*5.2*2.3cm
• - Host net weight: 120g
• - Measurement functions: pregnancy test, backfat thickness, distance, circumference, area, volume, angle, heart rate
• - Scope of application: Ultrasound examination for various needs in pet hospitals, clinics, zoos, breeding/breeding bases, and various scientific research units, etc.

Package Included

DW-C2 wireless probe；wireless charger； user manual
