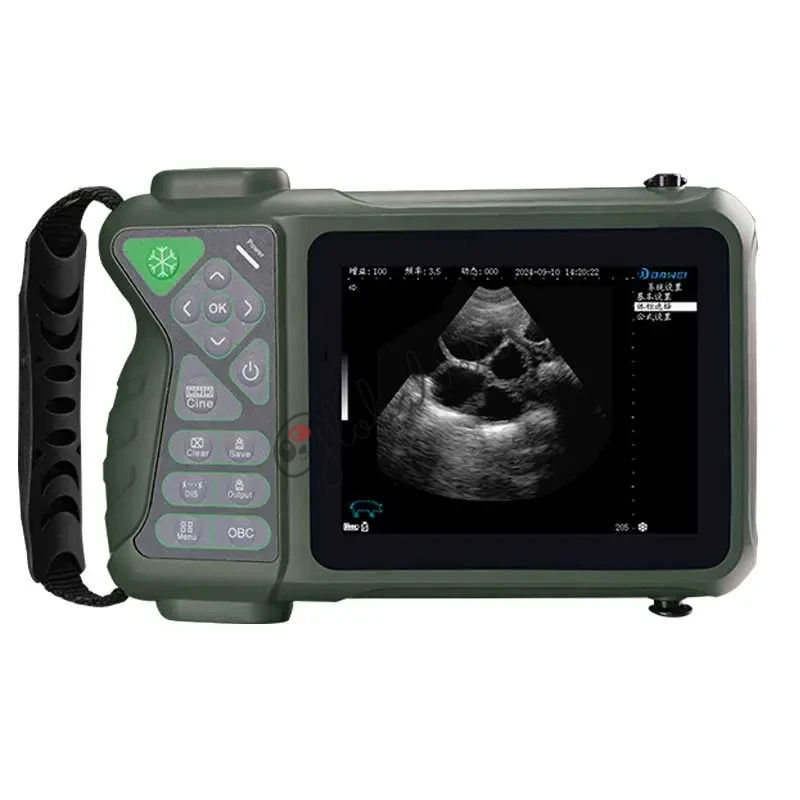

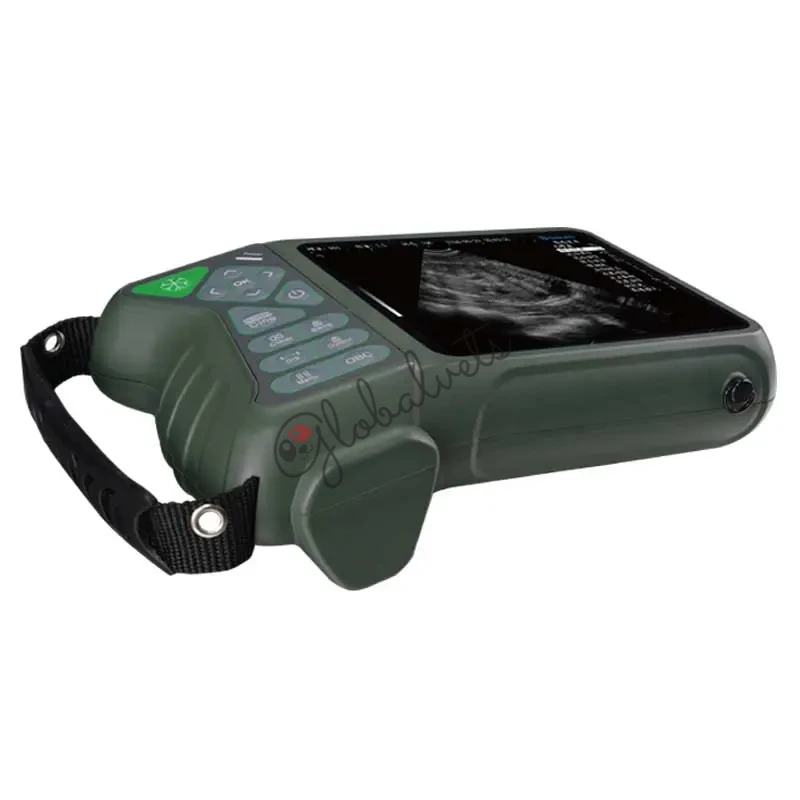

Handheld Veterinary Ultrasound for Swine & Sheep Pregnancy Testing
Elite is a portable veterinary ultrasound designed for swine pregnancy diagnosis and sheep pregnancy scanning on farms. This livestock ultrasound scanner supports B-mode ultrasound imaging with multiple display modes and practical workflow tools for reproductive checks.
Need Expert Advice?
Call us: +91 9811520889
Why Elite for livestock farms?
- Help improve breeding efficiency with early pregnancy confirmation
- Reduce open days and optimize feeding, housing, and farrowing/lambing planning
- Suitable for routine checks across herds/flocks
Designed for Swine & Sheep Reproduction
Elite is optimized for livestock reproductive ultrasound workflows, helping farms perform early pregnancy confirmation and routine herd checks. Use it as a sow pregnancy ultrasound scanner in pig farms or a sheep pregnancy ultrasound tool for ewes during breeding season.
Use cases :
- Swine / pig / sow pregnancy check
- Sheep / ewe pregnancy scanning
- Farm breeding management and reproductive monitoring
Waterproof Mechanical Sector Probe（Mechanical Fan Scan）
Built for livestock reproduction scanning, the Elite system supports a waterproof mechanical sector probe (mechanical fan scan transducer) designed for stable contact and efficient on-farm workflow.
B-Mode Imaging & Display Modes
Get clear, stable B-mode veterinary ultrasound images with flexible display options:
- Imaging modes: B, B+B, 4B, BM, M
- Image mirror tools: left-right mirror and up-down flip
- Display magnification: 16 modes
- Display depth: up to 221 mm
This makes Elite a reliable handheld livestock ultrasound for fast decisions during pregnancy scanning.
Elite supports cine replay ≥256 frames, allowing continuous playback or frame-by-frame review to confirm key findings during swine and sheep pregnancy checks.
Workflow benefits:
- Review quickly after scanning
- Compare frames to reduce missed observations
- Improve on-farm efficiency for large herds
Cine Loop & Storage
OB Measurements (Multi-Animal)
Elite provides obstetric measurement presets and common measurements for veterinary reproduction work.
General measurements: distance, circumference, area
Obstetric measurements (built-in presets):
Image Optimization Controls
256-level gain (0–255)
Dynamic range:27–90 dB
Image processing controls:
- Post-processing (0–3)
- Frame correlation (0–3)
- Edge enhancement (0–3)
- Color (0–23)
- Image optimization (0–12)
- Contrast (0–63)
Interfaces & Practical Functions
Ports / interfaces:
- USB port
- Probe port
- Charging port
- Video port
Other functions:
- Puncture guidance
- Parameter restore
- Grid
Battery & Mobility
This handheld veterinary ultrasound uses a replaceable rechargeable Li-ion battery:
- Replaceable rechargeable Li-ion battery (default 2600mAh)
- Working time: ~3 hours (optional 5200mAh for ~6 hours)
- Battery level indicator + charging indicator
Size & Weight
- Main unit size: 224 × 71 × 155 mm (L × W × H)
- Main unit weight: ~850g (with optional larger battery ~970g)
Technical Specifications Table
| Item | Specification |
| Display | 5.6-inch LED medical display |
| Scan method | Mechanical sector scan |
| Display modes | B, B+B, 4B, BM, M |
| Body markers | ≥50 |
| Image mirror | Left-right mirror, up-down flip |
| Cine loop | ≥256 frames |
| Storage | Built-in 4GB + USB flash drive support |
| Gain | 256 levels (0–255) |
| Dynamic range | 27–90 dB |
| Depth | 221 mm |
| Ports | USB, probe, charging, video |
| Other | Puncture guidance, parameter restore, grid |
| Battery | 2600mAh (~3h); optional 5200mAh (~6h) |
| Size | 224 × 71 × 155 mm |
| Weight | ~850g (optional battery ~970g) |
