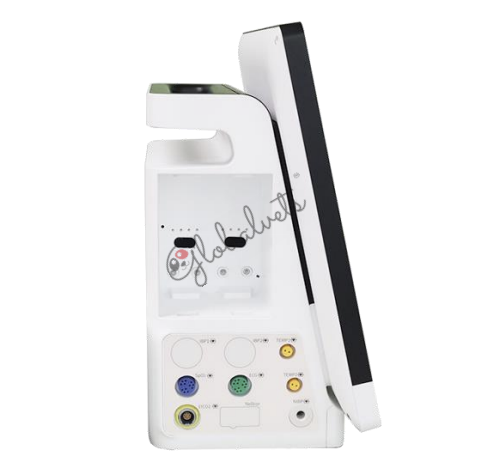

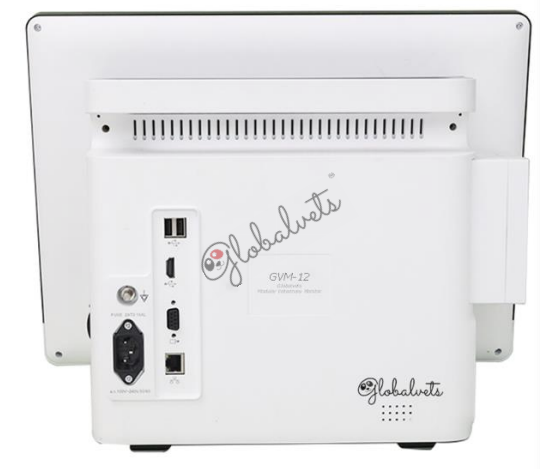

GVM-12 Globalvets Modular Patient Monitor
Built on decades of clinical expertise in managing anesthetic challenges, the new multiparameter monitor empowers veterinary teams to perform procedures more efficiently, combining integrated safety features with an intuitive, user-friendly design.
Need Expert Advice?
Call us: +91 9811520889
Modular & Scalable Architecture
Flexible dual-slot modular design supporting IBP, EtCO2 (mainstream & sidestream), and anesthetic gas (AG) modules
Easy upgrades as your clinical needs grow
High-Performance Processing
Advanced HiFi4 DSP co-processing core with operating frequencies up to 600 MHz
Configurable memory options: 128 / 256 / 512 MB DDR3, expandable up to 2 GB for stable, long-term performance
Clear, Intuitive Display Options
Available in 12.1” high-resolution touch LCD screen
Multiple display modes including large fonts, full/half screen views, and seven-channel waveform display
Comprehensive Vital Monitoring
Standard parameters: ECG, NIBP, SpO2, RESP, and Temperature (2-TEMP)
Advanced analytics including ST segment and QRS analysis
Customizable Clinical Configuration
Optional modules: IBP, EtCO2, AG, Nellcor® SpO2
Touchscreen interface and built-in recorder for enhanced workflow efficiency
Connectivity & Central Monitoring
VGA and HDMI expansion support
Seamless integration with central monitoring systems
Long-term data storage with easy review of patient history and trends
Portable & Reliable Power
Integrated 4000 mAh lithium battery providing over 4 hours of backup
Low power consumption for extended product life and dependable operation
Built for Veterinary Environments
Stable, durable design optimized for clinics, hospitals, and mobile veterinary settings
Specifications:
| Parameter | Range | Accuracy |
|---|---|---|
| CO₂ | 0–15% | ± (0.2% + 5%) @ 0–10% ± (0.2% + 8%) @ 10–15% |
| Respiratory Rate (RR) | 3–150 bpm | ± 1 bpm |
| N₂O | 0–100% | ± (2% + 3% of reading) |
| Sevoflurane | 0–8% | ± (0.15% + 5% of reading) @ 0–5% ± (0.3% + 5% of reading) @ 5–8% |
| Isoflurane | 0–8% | ± (0.15% + 5% of reading) @ 0–5% ± (0.3% + 5% of reading) @ 5–8% |
| Enflurane | 0–8% | ± (0.15% + 5% of reading) @ 0–5% ± (0.3% + 5% of reading) @ 5–8% |
Environmental:
| Condition | Specification |
|---|---|
| Operating Temperature | 0 to 40 °C |
| Operating Atmospheric Pressure | 70 to 120 kPa |
| Operating Humidity | 10–95%, non-condensing |
| Storage Temperature | 20 to 70 °C |
| Storage Atmospheric Pressure | 50 to 120 kPa |
